AMS 5644 1mm Cold Rolled Steel Grade 630 Abrasion Resistant Steel Plate 17 4 PH

Product Categories
Wuxi Zhongxin Special Steel Co.，Ltd
Contact Now

AMS 5644 1mm Cold Rolled Steel Grade 630 Abrasion Resistant Steel Plate 17 4 PH

Brand Name : xinzheng

Model Number : 17-4 ph stainless steel

Certification : ISO, EN, MTC

Place of Origin : CHINA

MOQ : 1 MT

Price : 1000-2000 Usd / Mt

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 4000 MT PER week

Delivery Time : 5-25 Days

Packaging Details : Standard seaworthy export package

Standard : ASTM A314

Grade : Type 630 ,

Certificate : Mill MTC ,Third party Inspection

Mill : TISCO, ZPSS,etc

Process : Cold rolled

Thickness : 0.15mm- 120mm

Width : 10mm-2030mm

Length : Max 18000mm

Surface finish : Brushed ,Mirror , 2B

Edge : slit edge ,Mill edge

Contact Now

 17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets overview

17-4 stainless is an age-hardening martensitic stainless combining high strength with the corrosion resistance of stainless steel. Hardening is achieved by a short-time, simple low-temperature treatment. Unlike conventional martensitic stainless steels, such as type 410, 17-4 is quite weldable. The strength, corrosion resistance and simplified fabrication can make 17-4 stainless a cost-effective replacement for high strength carbon steels as well as other stainless grades.

At the solution treating temperature, 1900°F, the metal is austenitic but undergoes transformation to a low-carbon martensitic structure during cooling to room temperature. This transformation is not complete until the temperature drops to 90°F. Subsequent heating to temperatures of 900-1150°F for one to four hours precipitation strengthens the alloy. This hardening treatment also tempers the martensitic structure, increasing ductility and toughness.

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets ​Specification and Dimension Ranges

 Specification: 17-4PH

AISI 631 AMS 5528 AMS 5529 AMS 5568 AMS 5644
AMS 5678 ASTM A313 (631) ASTM A564 (631) ASTM A579 (631) ASTM A693 (631)
ASTM A705 (631) DIN 1.4568 MIL S-25043 DIN 1.4568 AMS 5673
AMS 5824 ASME SA705 ASTM A579 (grade 62) MIL SPEC MIL-W-46078 SAE J217
SAE J467



Some Normal specification at a glance

　
 ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -







Dimension Ranges:



Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm



Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .





17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets Application

Stainless steel grade 17-7 PH finds uses in the following:

  • Variety of springs and washers
  • Chemical processing equipment
  • Heat exchangers
  • Power boilers
  • Superheater tubes
  • Components used in high-strength/high-temperature conditions

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets  Equivalent material

DIN 1.4542 JIS SUS630
DIN X5CrNiCuNb16-4 JIS SUSF630
DIN X5CrNiCuNb17-4 JIS SCS24
AFNOR Z7CNU15-05 EN X5CrNiCuNb16-4
AFNOR Z7CNU17-04 EN 1.4542
BS X5CrNiCuNb16-4 ISO X5CrNiCuNb16-4
AISI 630 ISO PP20I
AISI 17-4PH ISO 4542-174-00-I
SAE 630 GB 05Cr17Ni4Cu4Nb
SAE 17-4PH UNS S17400
SAE 630 (17-4PH)

Stainless Steel Sheets Metal - Grade 410 UNS S41000 Ams 5504 Technical datasheet

Chemical Composition

The chemical composition of stainless steel grade 17-7 PH is outlined in the following table.

Element Content (%)
Chromium, Cr 16-18
Nickel, Ni 6.50 - 7.75
Manganese, Mn 1 max
Silicon, Si 1 max
Aluminum, Al 0.75 - 1.50
Carbon, C 0.09 max
Phosphorous, P 0.040 max
Sulfur, S 0.030 max
Iron, Fe Balance

Physical Properties

The physical properties of stainless steel grade 17-7 PH are tabulated below.

Properties Metric Imperial
Density 7.80 g/cm3 0.282 lb/in3

Mechanical Properties

The following table shows mechanical properties of stainless steel grade 17-7 PH (TH1050, bar and forgings).

Properties Metric Imperial
Tensile strength 1170 MPa 170000 psi
Yield strength 965 MPa 140000 psi
Modulus of elasticity 204 GPa 29600 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break 6% 6%
Hardness, Rockwell C 38 38

Thermal Properties

The thermal properties of stainless steel grade 17-7 PH are given in the following table.

Properties Metric Imperial
Thermal conductivity 16.4 W/mK 114 BTU in/hr.ft2.°F
Thermal expansion co-efficient (@0.000-100°C/32-212°F) 11 µm/m°C 6.11 µm/m°C


17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets Products display and Package Details



 AMS 5644 1mm Cold Rolled Steel Grade 630 Abrasion Resistant Steel Plate 17 4 PH





AMS 5644 1mm Cold Rolled Steel Grade 630 Abrasion Resistant Steel Plate 17 4 PH



























































AMS 5644 1mm Cold Rolled Steel Grade 630 Abrasion Resistant Steel Plate 17 4 PH





General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.

Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.


Q: How long does your delivery time take?
A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.

Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.

Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.We provide All original Mill test certificate and support third party inspection.

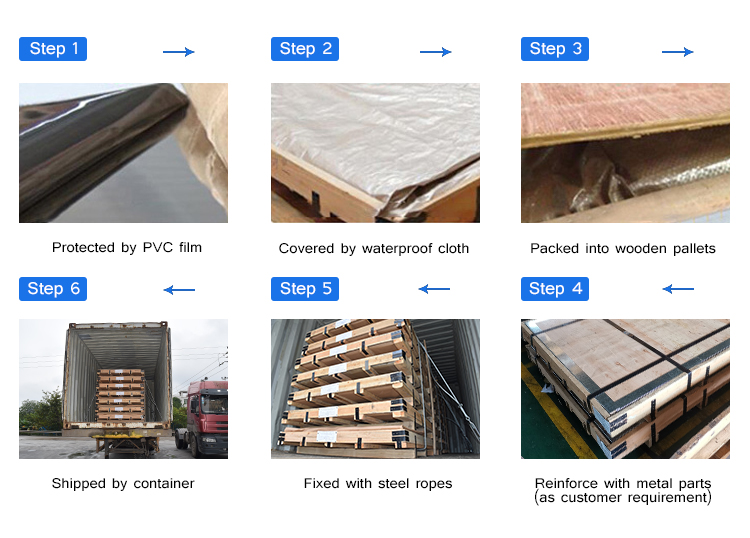

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
